BOB STAY POST & SOCKET - Price: $20.00 / set
Part Number: 1
Description:
6061 Alum. – Set
Part Photo:  |
|
BOB STAY POST - Price: $10.00 / each
Part Number: 2
Description:
3/8” dia. X 4-7/8” alum. rod
Part Photo:
|
| |
|
|
BOB STAY SOCKET - Price: $12.00 / each
Part Number: 3
Description:
5/8” cap/ 1-1/4” flange (1-1/4” dia x 1” alum. rod)
Part Photo: |
|

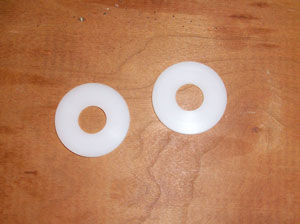

TILLER HOUSING - Price: $71.00
Part Number: 4
Description:
6061 - 1” square Alum. tubing ( .125” wall) x 23” with (2) delrin washers and bolt assembly
Part Photo: |
| |
|
|

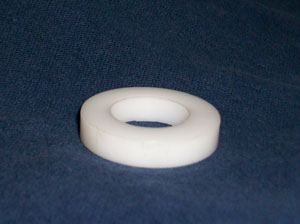

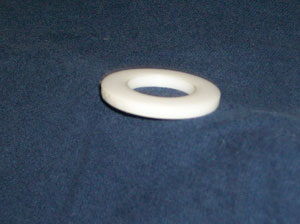

DELRIN WASHERS (replacement) - Price: $1.00 / set
Part Number: 5
Description:
1” O.D. x 3/8” I.D. x .06” (spacer) x 2 pc set
Part Photo: |
|

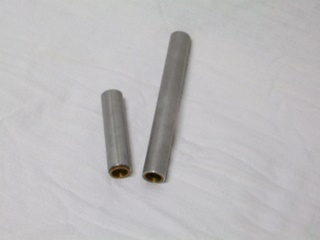

OILITE BUSHING ASSEMBLY - Price: $37.00 / set
Part Number: 6
Description:
6061 Alum. x .065” wall – set
Part Photo: |
| |
|
|
OILITE BUSHING - 3-7/8” TUBE - Price: $20.00
Part Number: 6a
Description:
3 pressed bushings. For “OPTI” steering chock post
Part Photo: |
|
OILITE BUSHING - 6-7/8” TUBE - Price: $20.00
Part Number: 6b
Description:
2 pressed bushings. For “OPTI” steering post
Part Photo: |
| |
|
|
OILITE BUSHING - 4” TUBE - Price: $20.00
Part Number: 7
Description:
3 pressed bushings. For steering chock post
Part Photo:
|
|
OILITE BUSHING - 7-1/4” TUBE - Price: $20.00
Part Number: 8
Description:
2 pressed bushings. For steering post
Part Photo:
|
| |
|
|
OILITE BUSHING - 8” TUBE - Price: $21.00
Part Number: 9
Description:
2 pressed bushings. For steering post UPON REQUEST.
Part Photo:
|
|
|
| |
|
|

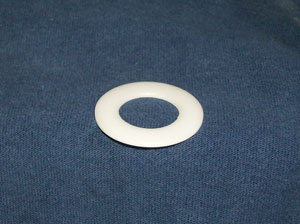

DELRIN SPACERS - Price $1.50 - $2.00 / each
Part Number: 11 (A-B)
Description:
Part Number: 11
1-1/4" dia. X 1/16" spacer - Price: $1.50 / each
Part Number: 11A
1-1/4" dia. X 1/8" spacer - Price: $1.75 / each
Part Number: 11B
1-1/4" dia. X 1/4" spacer - Price: $2.00 / each
Part Photo: |
|
MAST STEP ADJUSTMENT PLATE - Price: $31.00 / each
Part Number: 12
Description:
1/4” x 2-1/2” x 7” - 6061 alum. positions step in FOUR places @1-1/2” increments
Part Photo:
|
| |
|
|

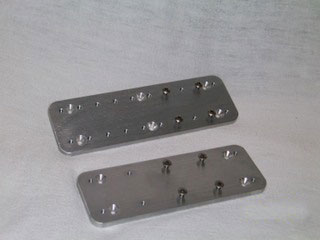

MAST STEP ADJUSTMENT PLATE - Price: $50.75 / each
Part Number: 12A
Description:
1/4” x 2-1/2” x 7-3/4” - 6061 alum. positions step in
EIGHT places
@ 3/4” increments
Part Photo: |
|
MAST STEP BASE & BALL PIN - Price: $148.50
Part Number: 13
Description:
Alum. plate with 3/4” dia. s.s. ball pin – 6 positions @ 1” increments
Part Photo: |
| |
|
|
BALL PIN - Price: $35.75
Part Number: 13A
Description:
3/4" dia. s.s. ball pin
Part Photo: |
|
MAST STEP BASE & BALL PIN - Price: $104.50
Part Number: 14
Description:
Alum. plate with 3/4" dia. s.s. ball pin - 1 HOLE
Part Photo: |
|
|
|
|
MAST SOCKET – SCREW IN - Price: $34.25
Part Number: 16
Description:
6061 Alum. – 1-1/2" dia. With white delrin insert
Part Photo: |
|
MAST SOCKET BASE - Price: $50.00
Part Number: 17
Description:
6061 Alum. – (3) x 5/8-11 tapped holes
Part Photo: |
| |
|
|
MAST SOCKET BASE - Price: $50.00
Part Number: 17A
Description:
6061 Alum. – (2) x 5/8-11 tapped holes; KENT STYLE
Part Photo:
|
|
|
| |
|
|
| APRIL 2023 |
ADJUSTERS ONLY – NO PINS - Price: $31.00
Part Number: 18
Description:
7/8" dia (16 ga. s.s.) tubing x 8"; 1/4" holes adjustment (3/4" spaced); tubing compressed to 9/16" I.D.
ONE TUBE ONLY !! - NO PIN or STAY TANG Adaptor
Part Photo: |
|
STUD PLATES – PLANK (SINGLE STUD) - Price: $32.75
Part Number: 19
Description:
Plain Finish S.S. Plates – single stud - Set of (2) plates: 1/8" x 1.5" x 5.5" Attach Fuselage To Plank: Inside or Outside
Part Photo: |
| |
|
|

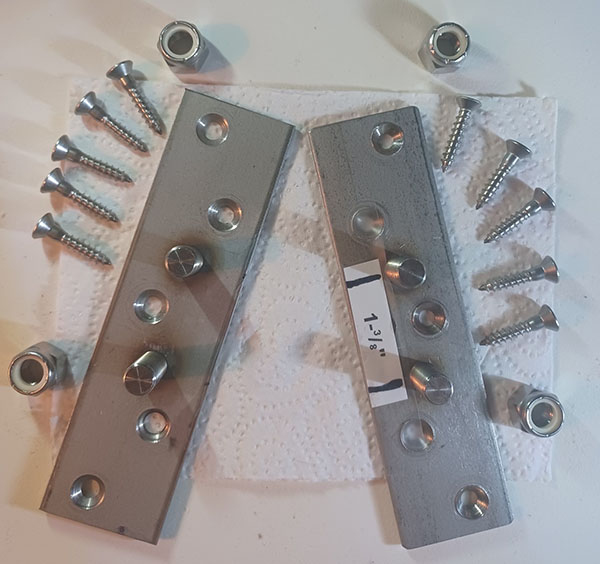

STUD PLATES - PLANK (DOUBLE STUD) - Price: $39.00
Part Number: 19A
Description:
Plain Finish S.S. Plates – double stud - Set of (2) plates - 1-3/8" spaced 1/8" x 1.5" x 5.5" Attach: 9" Double Inside Fuselage Plate to Plank
Part Photo:
|
|
STUD PLATES - PLANK (DOUBLE STUD) - Price: $42.00
Part Number: 19B
Description:
Plain Finish S.S. Plates – double stud - Set of (2) plates - 2" spaced 1/8" x 1.5" x 7.5" Attach: 9" Double Outside Fuselage Plate to Plank for @21A UPON REQUEST
Part Photo:
|
| |
|
|

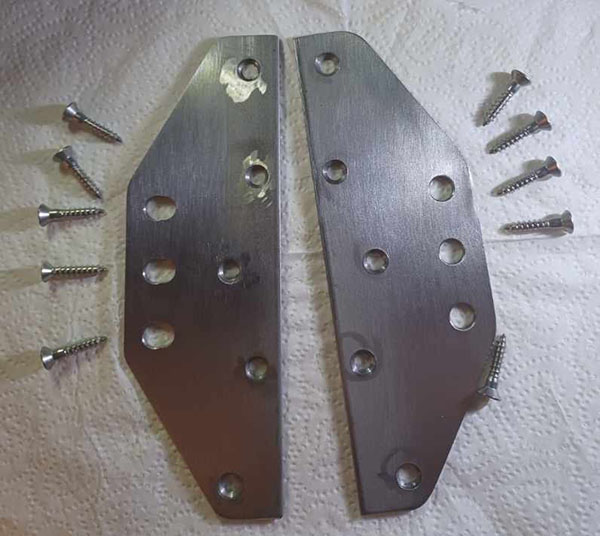

FUSELAGE PLATES - Price: $33.75
Part Number: 20
Description:
Plain Finish S.S. Plates - single stud – Set of (2) plates: 1/8" x 2.5" x 7.5" For Outside Hull Attachment - 3 Locations
Part Photo:
|
|
FUSELAGE PLATES - Alternate - Price: $36.00
Part Number: 20A
Description:
Plain Finish S.S. Plates - single stud – Set of (2) plates: 1/8" x 1.5" x 9.0" For 9" Inside Hull Attachment - 4 hole location
|
| |
|
|
FUSELAGE PLATES - Alternate - Price: $46.25
Part Number: 20B
Description:
Plain Finish S.S. Plates - single stud – Set of (2) plates: 1/8" x 1.5" x 11.0" For 11" Inside Hull Attachment - 4 hole location |
|
STUD & FUSELAGE PLATE SET - Price: $63.00
Part Number: 21
Description:
Plain Finish S.S. Plates – single stud (4) plates: (#19 & #20) For Outside Hull Attachment - 3 place location UPON REQUEST
|
| |
|
|
STUD & FUSELAGE PLATE SET - Price: $81.00
Part Number: 21A
Description:
Plain Finish S.S. Plates – double stud (4) plates 2" spaced (#19B & #22A) For Outside Hull Attachment - 3 place location UPON REQUEST
|
|

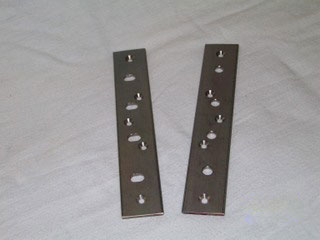

FUSELAGE PLATES - Alternate - Price: $43.75
Part Number: 22
Description:
Plain Finish S.S. Plates – double stud - Set of (2) plates - 1-3/8" spaced 1/8" x 1.5" x 9"
For Inside Hull Attachment. UPON REQUEST
Part Photo:
|
| |
|
|
FUSELAGE PLATES - Alternate - Price: $43.75
Part Number: 22A
Description:
Plain Finish S.S. Plates – double stud - Set of (2) plates - 2" spaced 1/8" x 1/5" x 9"
For Outside Hull Attachment. UPON REQUEST
|
|
THUMB NUT - Price: $7.00
Part Number: 23
Description:
Black Delrin – 3/4" Ø x 1-3/4" long with 7/16" wide thumb flats S.S. Helicoiled: 3/8"-24 x 3/4" deep. For stud plates.
Part Photo: |
| |
|
|
SIDE STAY TANG - Price: $20.00
Part Number: 24
Description:
Plain Finish S.S. @ 55° angle – set of 2 - 3/16" dia hole
Part Photo:
|
|

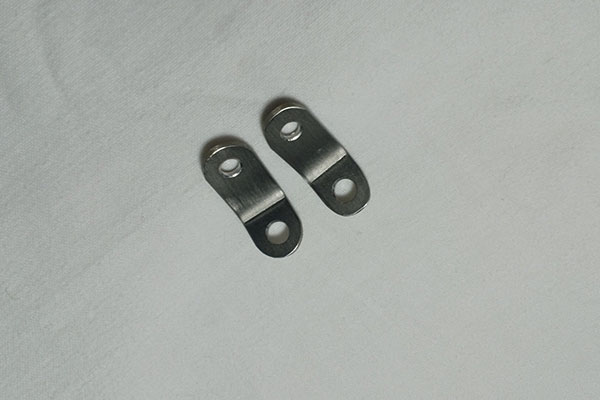

SIDE STAY TANG - Price: $20.00
Part Number: 24A
Description:
Plain Finish S.S. @ 55° angle – set of 2 - 1/4" dia hole
Part Photo:
|
| |
|
|
STAY TANG ADAPTER - Price: $23.00
Part Number: 25
Description:
Slotted S.S. adapter: bolted into bottom of adjuster tube & fits over
stay tang.
Part Photo: |
|
|
| |
|
|
“STAY MASTER” ADAPTER - Price: $23.00
Part Number: 26
Description:
Slotted S.S. adapter: bolt Head into bottom of "STAY MASTER" Adjuster & Slot over Stay Tang (2 holes @ 90°)
Part Photo: |
|
“STAY MASTER” ADAPTER - Price: $23.00
Part Number: 26A
Description:
Slotted S.S. adapter: bolt Head into bottom of "STAY MASTER" Adjuster or Head to Side Stays & slot over Side Stay Tangs (2) holes in-line
|
| |
|
|
WRENCH - “STAY MASTER” - Price: $17.00
Part Number: 27
Description:
6061 Alum. – 3/4" & 15/16" Hex Slot and 7/16" end slot for Thumb Nut
Part Photo:
|
|
|
| |
|
|
FAST PINS (Quick Release Pins) - Price: $12.50
Part Number: 28
Description:
304 S.S. (OAL x 2-1/2” ); 1/4” dia x 1-7/8” – 3/8 dia x 5/8” grip length with shock cord retainer.
Part Number: 28A
304 S.S. (OAL x 1-7/8” ); 1/4” dia x 1-1/4” – 3/8 dia x 5/8” grip length with shock cord retainer.
Part Number: 28B
304 S.S. (OAL x 1-7/8” ); 3/16” dia x 1-1/4” – 3/8 dia x 5/8” grip length with shock cord retainer.
Part Number: 28C
304 S.S. (OAL x 1-5/16” ); 3/16” dia x 11/16” – 3/8 dia x 5/8” grip length with shock cord retainer.
Part Photo:
|
|
CHOCK CAP & BOLT SET - Price: $76.00
Part Number: 29
Description:
3/16" Alum. (2 plates) 3/16" x 4" x 5-5/8" with (10) 5/16-24 x 2.25" & (2) 5/6-24 x 2.50" s.s. bolts
Part Photo: |
| |
|
|

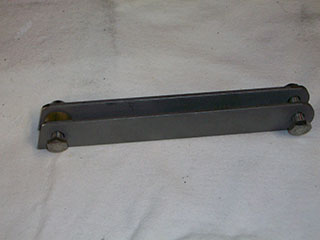

PARKING BRAKE - Price: $34.50
Part Number: 30
Description: Stainless Steel
1/4” Wide (9/32” Brass Spacer)
1” Wide (1-1/32” Wide Brass Spacer)
|
|
STEERING POST HEAD - Price: $43.00
Part Number: 31
Description:
Alum head
Part Photo: |
| |
|
|
STEERING POST - Price: $90.00
Part Number: 32
Description:
Single Arm
Part Photo: |
|
STEERING POST - Price: $95.00
Part Number: 33
Description:
Double Arm (UPON REQUEST)
Part Photo: |
| |
|
|
STEERING CHOCK, SINGLE ARM - Price: $100.00
Part Number: 35
Description:
Low cut, one arm
Part Photo: |
|

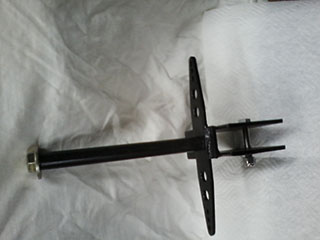

STEERING CHOCK, DOUBLE ARM - Price: $114.00
Part Number: 35A
Description:
Double Arm UPON REQUEST
Part Photo: |
| |
|
|
SPRING, STEERING CHOCK - Price: $8.75
Part Number: 36
Description:
Conical: .125” dia. wire is 2.0” O.D. (Top) x .75” I.D. (Bottom) x 2" Long
Part Photo:
|
|
STEERING PUSH ROD - Price: $110.00
Part Number: 37
Description:
46" centered length: 45-1/4" to 46-3/4" adjustment range of
ball joint ends - One end R.H. threads & opposite end L.H. threads
Part Photo: |
| |
|
|
SIDE CHOCKS - Price: $350.00
Part Number: 42
Description:
UPON REQUEST Call for information 2 pc. set x 9" |
| |
|
|
DN - STEERING LINKAGE PACKAGE
APRIL 2023 |
4” OILITE TUBE – STEERING CHOCK POST - Price: $20.00
Part Number: 7 |
7-1/4” OILITE TUBE STEERING CHOCK - Price: $20.00
Part Number: 8 |
| |
|
TILLER HOUSING - Price: $71.00
Part Number: 4 |
STEERING POST HEAD (Alum Head) - Price: $43.00
Part Number: 31 |
| |
|
STEERING POST (single arm) - Price: $90.00
Part Number: 32 |
STEERING CHOCK (single arm) - Price: $100.00
Part Number: 35 |
| |
|
STEERING CHOCK SPRING - Price: $8.75
Part Number: 36 |
STEERING PUSH ROD - Price: $110.00
Part Number: 37 |
| |
|
| Parts Total: $462.75 |
Package Total: $393.34 |
| |
|
DN - TOTAL PARTS PACKAGE
APRIL 2023 |
BOB STAY POST - Price: $10.00
Part Number: 2 |
BOB STAY SOCKET - Price: $12.00
Part Number: 3 |
| |
|
TILLER HOUSING - Price: $71.00
Part Number: 4 |
4” OILITE TUBE – STEERING CHOCK POST - Price: $20.00
Part Number: 7 |
| |
|
7-1/4” OILITE TUBE STEERING CHOCK - Price: $20.00
Part Number: 8 |
MAST STEP ADJUSTMENT PLATE - Price: $31.00
Part Number: 12
Description:
(4) place |
| |
|
MAST SOCKET - SCREW IN - Price: $34.25
Part Number: 16 |
MAST SOCKET BASE - Price: $50.00
Part Number: 17
Description:
6061 Alum. - (3) x 5/8-11 tapped holes |
| |
|
STUD PLATES – PLANK - Price: $32.75
Part Number: 19
Description:
set x (2): 3/8-24 stud & lock nut |
FUSELAGE PLATES - Price: $33.75
Part Number: 20
Description:
Inside or Outside Hull Attachment x (2) pc |
| |
|
SIDE STAY TANG - Price: $20.00
Part Number: 24
Description:
set x (2) @ 55° angle |
CHOCK CAP & BOLT SET - Price: $76.00
Part Number: 29
Description:
set x (2) plates with 5/16-24 s.s. bolts set |
| |
|
PARKING BRAKE - Price: $34.50
Part Number: 30
Description:
9/32” or 1-1/32” Brass Spacer |
STEERING POST HEAD - Price: $43.00
Part Number: 31
Description:
Alum head
|
| |
|
STEERING POST - Price: $90.00
Part Number: 32
Description:
single arm
|
STEERING CHOCK - Price: $100.00
Part Number: 35
Description:
single arm |
| |
|
SPRING, STEERING CHOCK - Price: $8.75
Part Number: 36 |
STEERING PUSH ROD - Price: $110.00
Part Number: 37
Description:
46" centered length. |
| |
|
| Parts Total: $776.75 |
Package Total: $660.24 (w/o Side Chocks) | $1010.24 (with Side Chocks #42) |
| |
|
“OPTI” – ICEBOAT HARDWARE PARTS LIST
APRIL 2023 |
| |
MAST BASE - Price: $34.00
Part Number: 38
Description:
Bottom mast pole plug to receive Screw-In Mast Socket
(Mast Socket sold separately)
Part Photo: |
MAST SOCKET - SCREW IN - Price: $34.25
Part Number: 19
Description:
6061 Alum. – 1-1/2" dia. With white delrin insert
Part Photo: |
| |
|
MAST TOP & RIGGING ARMATURE - Price: $50.00
Part Number: 39
Description:
Top Mast pole plug with screw-in armature for rigging
Part Photo:
|
STEERING ROD - Price: $110.00
Part Number: 40
Description:
35-3/4" eyebolt to eyebolt
Part Photo:
|
| |
|
Rigging Armature - Screw-In - Price: $26.00
Part Number: 41
Description:
Rigging Armature – Screw-In
Part Photo: |
|
| |
|
3-7/8” OILITE TUBE - Price: $20.00
Part Number: 6A
Description:
steering chock post |
6-7/8” OILITE TUBE - Price: $20.00
Part Number: 6B
Description:
steering post |
| |
|
 “NITE” – ICEBOAT HARDWARE PARTS LIST
APRIL 2023
Parts Made Upon Request - 50% Down With Order |
| |
BOW CHOCK - Price: $175.00
Part Number: 1
Description:
1/4" HRS with 4" stud
|
SIDE CHOCKS - Price: $205.00
Part Number: 2
Description:
1/4" HRS x 7 - set of (2)
|
| |
|
SIDE CHOCKS - Price: $350.00
Part Number: 2A
Description:
3/8" Aluminum x 7" - set of (2)
|
CHOCK CAP & BOLT SET - Price $76.00
Part Number: 3
Description:
3/16" Alum. (2 plates) 3/16" x 4" x 5-5/8" with 5/16-24 S.S. bolts
|
| |
|
STAY TANG - Price: $28.00
Part Number: 4
Description:
Set of (3) – Plain Finish S.S. 1/8" x 1.0" @ 55° angle
(Side Stay Tang – set of (2) with 17/64” hole)
(Bow Stay Tang – with 1/2” hole) |
SIDE STAY TANG - Price $19.50
Part Number: 4A
Description:
Plain Finish S.S. 1/8" x 1.0" @ 55° angle – set of (2) with 17/64” hole
|
| |
|
BOW STAY TANG - Price $11.00
Part Number: 4B
Description:
Plain Finish S.S. 1/8" x 1.0" @ 55° angle – with 1/2” hole |
HALYARD CATCH - Price $10.00
Part Number: 5
Description:
Plain Finish S.S. 1/8" x 3/4" - with Ct'Sink for #8 screws
|
